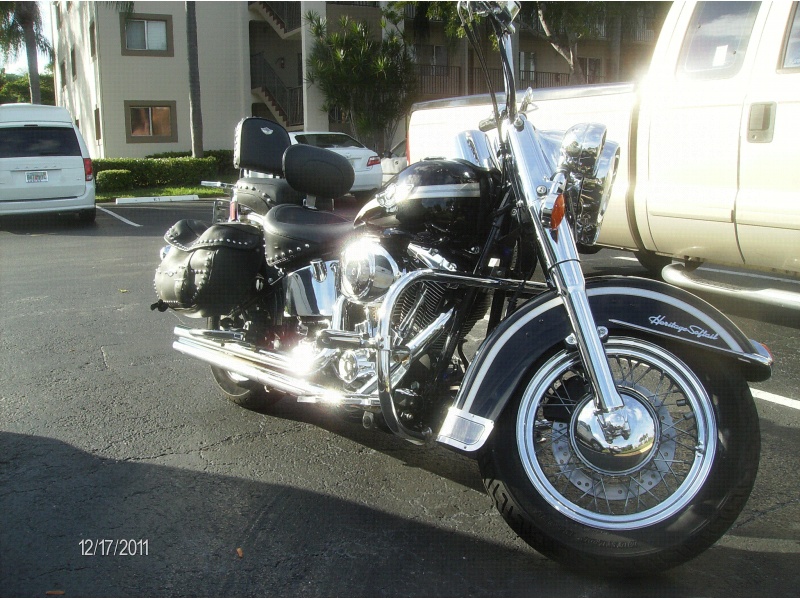

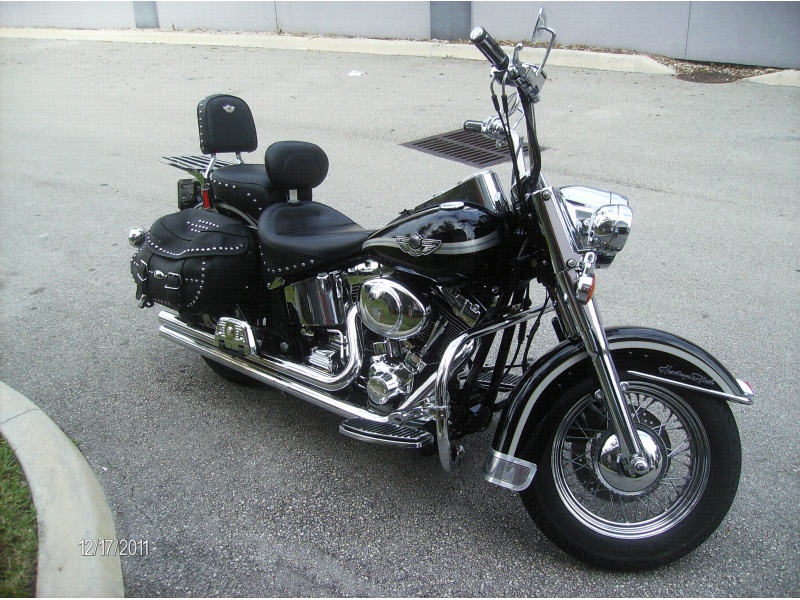

2003 100-Yr Harley Davidson Softail 16,000 Miles Excellent Condtion. $12495

Private Party Sale Type
2003 Year
Harley Davidson Make
FLSTC Heritage Softail Classic Model
16,017 Mileage

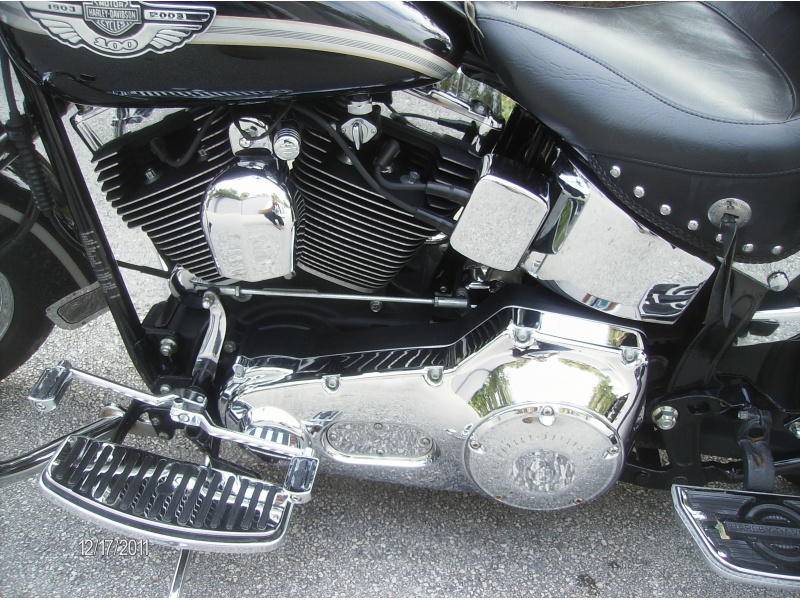

Rigid Mount 1450cc Twin Cam Balanced Engine
Black ExtColor
AS IS No Warranty Warranty

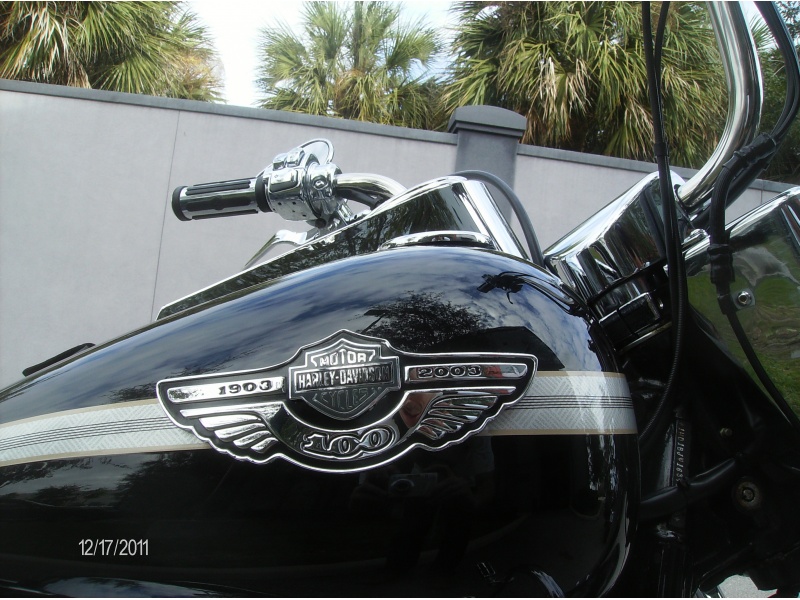

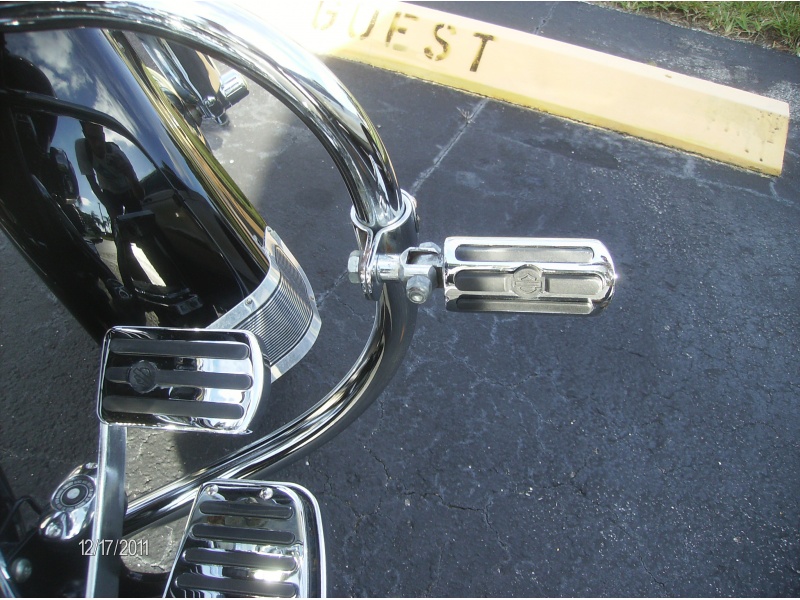

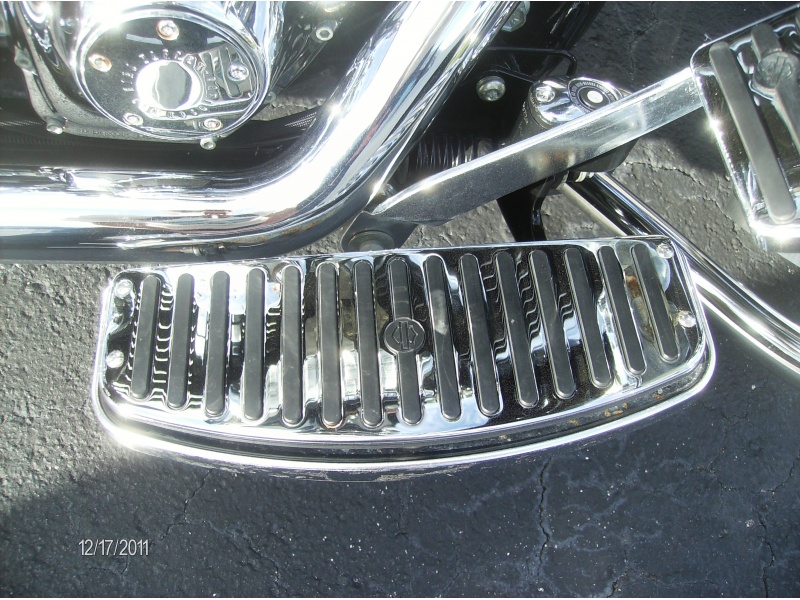

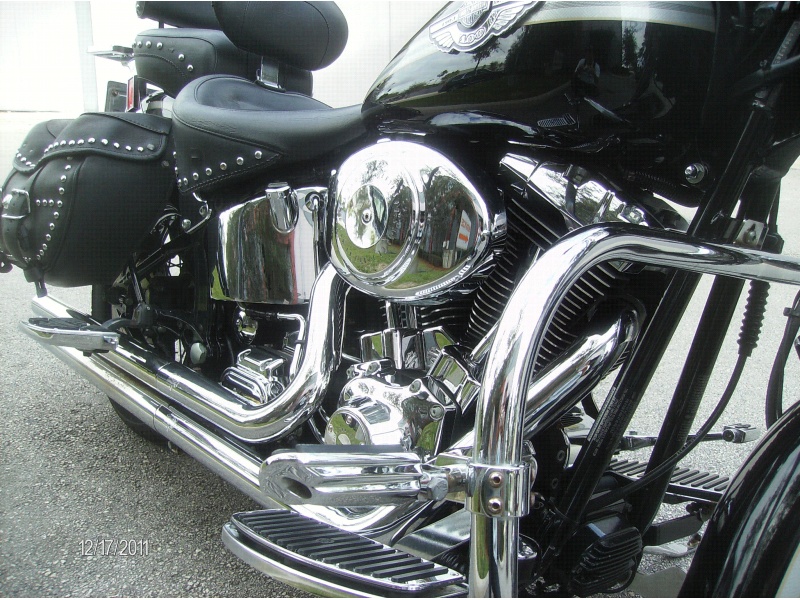

Upgrades: Driver and Passenger Floor Boards, Toe/heal Gear Levers, Engine Guard w/ Foot Rests, Handlebars, Dual Full-Length Vance and Hines Exhaust Pipes (baffles remain), Fuel and Gauge Caps, King Size Lexan Detachable Windshield, Bright LED 24-Setting Safety Taillight, Driver and Passenger Back Rests.



Servicing: Received all manufacturer suggested services. Paperwork included.



Clear Title and Vehicle History Report in Hand

Key FLSTC Heritage Softail® Classic characteristics

Styled to recall the past, the Heritage Softail® Classic is a bike for riders who want the comfort of a modern bike with the classic look of a 1940s hardtail. With the Twin Cam 88B™ engine and detachable windshield, the Heritage Softail® Classic is ready to tour or cruise. This bike takes riders back in time with features such as: a fat front fork, classic studded leather saddlebags, chrome-studded seat, full windshield, floorboards, large chrome headlamp with twin passing lamps, and Fat Bob fuel tank.



SPECIFICATIONS:

Rigid mount, 1450cc Twin Cam 88B™ balanced engine, Black powder coated engine with chrome covers, Detachable king-size Lexan windshield, 1950s-style leather saddlebags with quick detach buckles, Passenger backrest, Touring handlebar, Full FL front fender with chrome accents, Chrome passing lamps,  Chrome-plated directional light bar, Chrome hub cover



DIMENSIONS

Length 94.5 in. (2400.3 mm), Seat Height (measure laden w/ 180 lb. rider) 25.4 in. (645.2 mm), Seat Height (unladen) 27.4 in. (697.0 mm), Ground Clearance 5.1 in. (129.5 mm), Fork Rake 32.0 degrees, Trail 5.8 in. (147.3 mm), Wheelbase 64.5 in. (1638.3 mm), Tires: Dunlop Harley-Davidson Series, Front - D402F MT90B16 72H, Rear - D401 150/80B16 71H, Fuel Capacity (includes 0.5 gal. reserve) 5.0 gal. (18.9 L), Reserve Fuel Capacity (warning light at approx. 1.0 gal. for ESPFI models) 0.5 gal. (1.9 L), Oil Capacity 3.5 qts. (3.3 L), Dry Weight 699.0 lbs. (317.0 kg), Vehicle Weight In Running Order (unladen) 738 lbs. (335.0 kg), Gross Vehicle Weight Rating 1160.0 lbs. (527.0 kg)



ENGINE

Engine 45º Air-cooled Twin Cam 88B™ (balanced), Valves Pushrod-operated overhead valves; w/ hydraulic, self-adjusting lifters; two valves per cylinder, Bore x Stroke 3.75 x 4.0 in. (95.25 x 101.6 mm), Displacement 88 cu. in. (1450 cc), Compression Ratio 8.9:1, Fuel System2 Carburetion.



DRIVETRAIN

Primary Drive Double row chain, oil bath, mechanical tensioner, 36/25 ratio, Final Drive Gates carbon fiber reinforced, polychain belt, 32/70 ratio, Clutch 9-Plate, wet, Transmission Five-speed, Overall Ratio:

1st 10.110, 2nd 6.958, 3rd 4.953, 4th 3.862, 5th 3.150



CHASSIS

Frame Mild steel, rectangular section backbone, w/ twin down-tubes, Swing Arm Triangular “hard tail” style, Front Fork 41.3 mm, Telescopic w/ “beer can” covers, Wheels 16 in. laced front, 16 in. laced rear, Brakes: Caliper type Dual-piston front and rear, Rotor type (diameter x width): Patented, Uniform Expansion Rotors, Front 11.5 in. x .20 in. (292.1 mm x 5.08 mm), Rear 11.5 in. x .23 in. (292.1 mm x 5.84 mm), Suspension travel: Front Wheel 5.10 in. (129.54 mm), Rear Wheel 4.30 in. (109.22 mm)



PERFORMANCE

Engine Torque (per SAEJ607)3: North America 85 ft. lbs. @ 3000 rpm (115.0 NM @ 3000 rpm), International 81 ft. lbs. @ 3100 rpm (110.0 NM @ 3100 rpm), Lean Angle (per SAEJ1168): Right 28.9 degrees, Left 28.1 degrees



ELECTRIC

Battery Sealed, maintenance-free, 12-volt, 19 amp-hour, 270 cca, (per Battery Council International rating), Charging 37-amp  permanent magnet alternator w/ solid-state regulator, (481 watts @ 3,000 rpm, 494 watts peak), Starting 1.2 kw electric w/ Bendix-type engagement, Lights: (As per country regulation), Headlamp Quartz halogen 55-watt low beam, 60-watt high beam, Tail/stop lights 8w/28w (int’l: 5w/21w), Turn signal lights (self-canceling) 28w (int’l: 21w), Passing/fog lamps Standard, Front fender runing light Standard, Indicator lamps High beam, neutral, oil, turn signals, and security system (optional)4



STYLING/CONVENIENCE

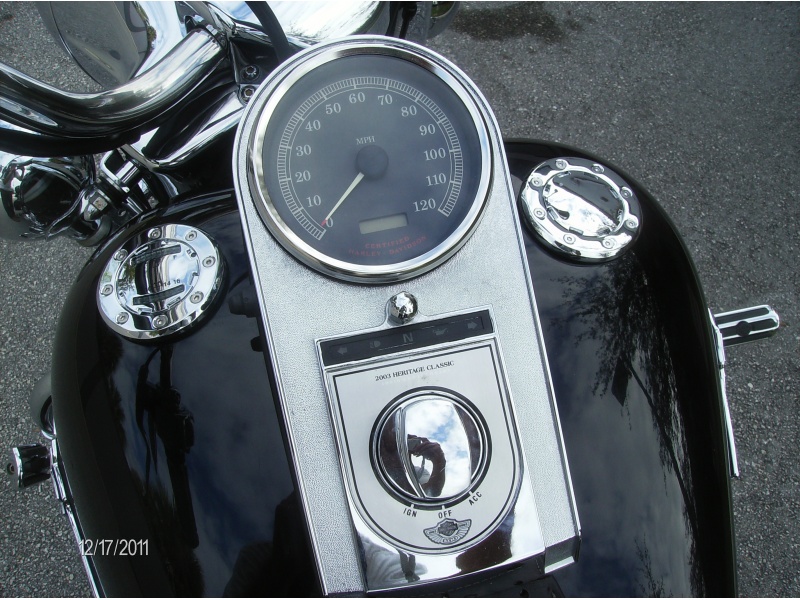

Engine Trim Powdercoated black w/ chrome covers, Exhaust System Chrome staggered shorty duals, Oil Tank Chrome "Horseshoe" w/ chrome external oil lines, Ignition Barrel key, tank console-mounted, Windshield Detachable king-size Lexan, Passenger Backrest Standard, Saddlebags Nostalgic studded leather, Foot Supports Full-length operator floorboards w/ heel-toe shifter lever, Rear Fender Full coverage, Rear Fender Supports Chrome, Fork Lock Barrel key, common w/ ignition, Instruments Electronic speedometer w/ odometer and resettable tripmeter w/ diagnostic readout capabilities, Flasher Hazard warning integrated into turn signal controls



COLOR

Vivid Black

Send a message 720-454-4010
